GIE Header

GIE

🔐 What is GIE and what is it for?

In summary: An encryptor and decryptor for files and folders for Windows, Linux and macOS, written in GO using AES. 💜 GIE is cross-platform, it works on Windows, Linux and macOS.

Example: You can encrypt your file on Windows and decrypt it on Linux or vice versa.

In detail: GIE (Go-based Information Encryptor), is a cross-platform desktop application built using the Wails framework. GIE is designed for the secure encryption and decryption of files and directories, leveraging robust cryptographic primitives implemented in Go. The application aims to provide a user-friendly interface for managing sensitive data.

Example of use

Version

GIE v1.2.5

📦 Requirements

• Go v1.24+
• Wails v2.10+
• Node v22.17+

❓ Features

• Encrypts and decrypts files and folders with AES, for any file type.
• GIE follows a client-server architecture facilitated by the Wails framework.
• Possibility of adding hints.
• Possibility of sharing files between operating systems.
• 3 levels of protection (Low, Normal, High).
• Possibility of adding an encryption channel for greater security.
• Lightweight and easy to use.
• Intuitive and friendly user interface.
• Open Source!

🧑‍💻 Technical Features

Encrypt and decrypt your files and folders with AES, for any file type: jpg, zip+, mp4, mp3, docx, pdf, etc...

GIE follows a client-server architecture facilitated by the Wails framework. * Frontend (Client): Developed with React (Svelte) and TypeScript, responsible for the user interface and interaction. It communicates with the Go backend through Wails' inter-process communication (IPC) mechanisms. * Backend (Server): Implemented in Go, it handles all the central logic, including file operations, cryptographic processes and system interactions.

GIE employs a hybrid encryption scheme that combines symmetric encryption (AES CTR) for data confidentiality and a Message Authentication Code (HMAC-SHA256) for data integrity and authenticity. Key derivation is performed using PBKDF2.

The encryption and HMAC keys are derived from the user's password using PBKDF2 (Password-Based Key Derivation Function 2) with SHA256 as the pseudorandom function. Separate salts are used for the AES key and the HMAC key to prevent cross-protocol attacks. The number of iterations and the key length are configurable according to the chosen encryption level (Low, Normal, High).

The PBKDF2 function is defined as:

Where:

• DK: Derived Key
• PRF: Pseudorandom Function (HMAC SHA256 in this case)
• Password: Password provided by the user
• Salt: Random salt (16 bytes)
• Iterations: Number of iterations (e.g., 10,000 for Low, 800,000 for Normal, 12,000,000 for High)
• KeyLength: Desired length of the derived key (16 bytes for AES-128, 32 bytes for AES-256)

AES in Counter (CTR) mode is used to encrypt the file content. CTR mode transforms a block cipher into a stream cipher, allowing parallel encryption/decryption and direct access to any part of the ciphertext. A unique and randomly generated 16-byte Initialization Vector (IV) is used for each encryption operation. The CTR mode encryption process can be conceptually represented as:

Where:

• Ci: i-th block of ciphertext
• EK: AES encryption function with key K
• Nonce: A unique value for each encryption (part of the IV)
• Counteri: A counter that is incremented for each block
• Pi: i-th block of plaintext
• ⊕: Bitwise XOR operation

HMAC-SHA256 is used to ensure the integrity and authenticity of the encrypted data and its associated metadata. The HMAC is calculated over the entire encrypted file, including the metadata header (hint length, hint, channel, encryption level code, AES salt, HMAC salt, CTR IV) and the ciphertext. This prevents tampering with both the data and its critical parameters.

The HMAC function is defined as:

Where:

• H: Hash function (SHA256 in this case)
• K: Secret key (derived HMAC key)
• m: Message (metadata || ciphertext)
• ipad: Inner padding (0x36 repeated)
• opad: Outer padding (0x5C repeated)
• ||: Concatenation

Method Structure

GIE provides a robust and secure solution for encrypting files and directories, built on modern cross-platform technologies. Its design prioritizes both security through solid cryptographic practices and usability through a responsive graphical interface.

The following sequence diagram shows the complete workflow of file processing with real function calls:

Application Flow

The backend is based on a central application structure that acts as the main application controller and exposes methods to the frontend through the Wails framework.

Application structure and main components

If you want to know more in depth, you can consult the GitHub Repository for additional details and usage examples. You can also consult with DeepWiki

💻 Installation

Run the commands according to your case (Win or Linux)

Clone or download this repository

#BATCH
Copy
1git@github.com:aiskoa/GIE.git
2

Change directory

#BATCH
Copy
1cd GIE
2

Install the dependencies

#BATCH
Copy
1npm install
2

And run

wails build to compile the application

Make sure you have the latest version of Wails, Node and Go installed on your computer.

ATTENTION!!

If you just want to use it, you can download it from github or from the official site according to your system.

From Official Site: ⬇ Download GIE

Minimum Requirements:

• Windows 10/11 / Debian / macOS Ventura or later
• 1 GB of disk space
• 2 GB of RAM

🔒 How to Encrypt?

At the moment it is only available through the GUI.

To Encrypt a folder or file

• Drag or search for the file in the program (Graphical Interface)
• Enter a password (Important to remember it)
• Write a hint for the password (Optional)
• Choose the encryption channel (Optional)
• Choose the encryption level (Optional)
• Click on "Encrypt"
• This converts the file to (.gie)

Once the file is encrypted in .gie it cannot be opened, read or modified. Keep in mind that GIE works for any type of file, even for large files.

👀 NOTE IF YOU ACCIDENTALLY ENCRYPT ANY FILE OR FUNCTIONALITY OF GIE THE ONLY WAY TO RESTORE IT IS BY REINSTALLING THE PROGRAM!

⚠️⚠️ IMPORTANT ⚠️⚠️

• The only way to "recover" the file again is by decrypting it with the GIE program.
• If you want to share the file with your colleague, friend or work team, you will have to provide them with the .gie, the password used and the channel (if applicable).
• IF YOU FORGET OR LOSE THE PASSWORD, YOU WILL NOT BE ABLE TO RECOVER THE FILE IF A HINT WAS NOT WRITTEN.
• IF YOU PUT A CHANNEL YOU MUST ALSO REMEMBER IT OTHERWISE YOU WILL NOT BE ABLE TO RECOVER THE FILE.

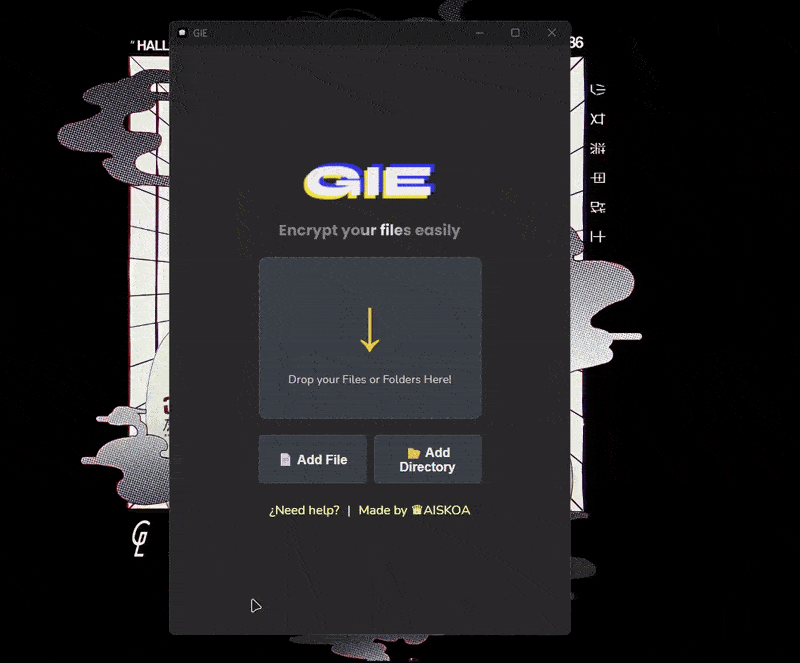

Example encrypting a PDF

🔓 How to Decrypt?

At the moment it is only available through the GUI.

To Decrypt a file

• Drag or search for the (.gie) file in the program (Graphical Interface)
• Enter the password (Required)
• Choose the encryption channel (Optional)
• Click on "Decrypt"
• This converts the file to its natural state

Keep in mind that it will only work for encrypted .gie files. It only works with files encrypted by GIE (Go-based Information Encryptor) current v1.2.5 or higher.

👀 NOTE IT WILL NOT WORK WITH .GIE FILES VERSION PYTHON, ONLY WITH THE VERSION WRITTEN IN GO!!

• The only way to "recover" the file again is by decrypting it with the GIE program.
• If you want to share the file with your colleague, friend or work team, you will have to provide them with the .gie, the password used and the channel (if applicable).
• IF YOU FORGET OR LOSE THE PASSWORD, YOU WILL NOT BE ABLE TO RECOVER THE FILE IF A HINT WAS NOT WRITTEN.
• IF YOU PUT A CHANNEL YOU MUST ALSO REMEMBER IT OTHERWISE YOU WILL NOT BE ABLE TO RECOVER THE FILE.

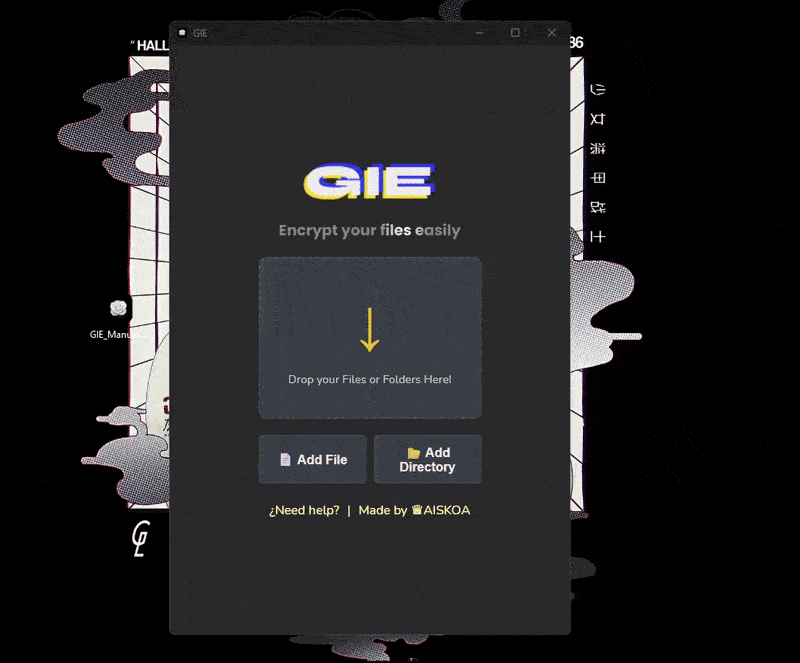

Example decrypting a PDF

Directory encryption function

#GO
Copy
1func (a *App) EncryptDirectory(dirPath string, password string, hint string, encryptionLevel string, channel int) string {
2	if password == "" {
3		return "Encryption failed: password cannot be empty."
4	}
5
6	// Check if path is actually a directory
7	isDir, err := a.IsDirectory(dirPath)
8	if err != nil {
9		return fmt.Sprintf("Error checking if path is directory: %v", err)
10	}
11	if !isDir {
12		return "Selected path is not a directory."
13	}
14
15	// Get all files in directory
16	files, err := a.GetFilesInDirectory(dirPath)
17	if err != nil {
18		return fmt.Sprintf("Error getting files from directory: %v", err)
19	}
20
21	if len(files) == 0 {
22		return "No files found in directory to encrypt."
23	}
24
25	// Track results
26	var results []string
27	successCount := 0
28
29	for i, file := range files {
30		fmt.Printf("Encrypting file %d/%d: %s\n", i+1, len(files), file)
31
32		result := a.EncryptFile(file, password, hint, encryptionLevel, channel)
33		if result == "success" {
34			successCount++
35			results = append(results, fmt.Sprintf("✓ %s", filepath.Base(file)))
36		} else {
37			results = append(results, fmt.Sprintf("✗ %s: %s", filepath.Base(file), result))
38		}
39	}
40
41	// Return summary
42	summary := fmt.Sprintf("Directory encryption completed: %d/%d files encrypted successfully", successCount, len(files))
43	if successCount < len(files) {
44		summary += "\n\nDetailed results:\n" + strings.Join(results, "\n")
45	}
46
47	return summary
48}
49

Directory decryption function

#GO
Copy
1func (a *App) DecryptDirectory(dirPath string, password string, channel int) string {
2	if password == "" {
3		return "Decryption failed: password cannot be empty."
4	}
5
6	// Check if path is actually a directory
7	isDir, err := a.IsDirectory(dirPath)
8	if err != nil {
9		return fmt.Sprintf("Error checking if path is directory: %v", err)
10	}
11	if !isDir {
12		return "Selected path is not a directory."
13	}
14
15	// Get all .gie files in directory
16	var encryptedFiles []string
17
18	err = filepath.Walk(dirPath, func(path string, info os.FileInfo, err error) error {
19		if err != nil {
20			return err
21		}
22
23		// Only add .gie files
24		if !info.IsDir() && strings.HasSuffix(path, ".gie") {
25			encryptedFiles = append(encryptedFiles, path)
26		}
27		return nil
28	})
29
30	if err != nil {
31		return fmt.Sprintf("Error scanning directory: %v", err)
32	}
33
34	if len(encryptedFiles) == 0 {
35		return "No encrypted files (.gie) found in directory to decrypt."
36	}
37
38	// Track results
39	var results []string
40	successCount := 0
41
42	for i, file := range encryptedFiles {
43		fmt.Printf("Decrypting file %d/%d: %s\n", i+1, len(encryptedFiles), file)
44
45		result := a.DecryptFile(file, password, false, channel)
46		if result == "success" {
47			successCount++
48			results = append(results, fmt.Sprintf("✓ %s", filepath.Base(file)))
49		} else {
50			results = append(results, fmt.Sprintf("✗ %s: %s", filepath.Base(file), result))
51		}
52	}
53
54	// Return summary
55	summary := fmt.Sprintf("Directory decryption completed: %d/%d files decrypted successfully", successCount, len(encryptedFiles))
56	if successCount < len(encryptedFiles) {
57		summary += "\n\nDetailed results:\n" + strings.Join(results, "\n")
58	}
59
60	return summary
61}
62

📖 Documentation

See the Documentation and User Guides

📝 Changelog

See the Changelog

✍️ To-Do List

• Password hint
• Theme change
• Android support
• iOS support
• Possibility of use from terminal without GUI (API or MCP)
• Password check
• Reinforced AES
• User interface menu
• Encryption of complete folders and directories

📝 License

Copyright © 2024 aiskoa. This project is licensed MIT.
